SMALL ORDER/SMAPLE MODEL

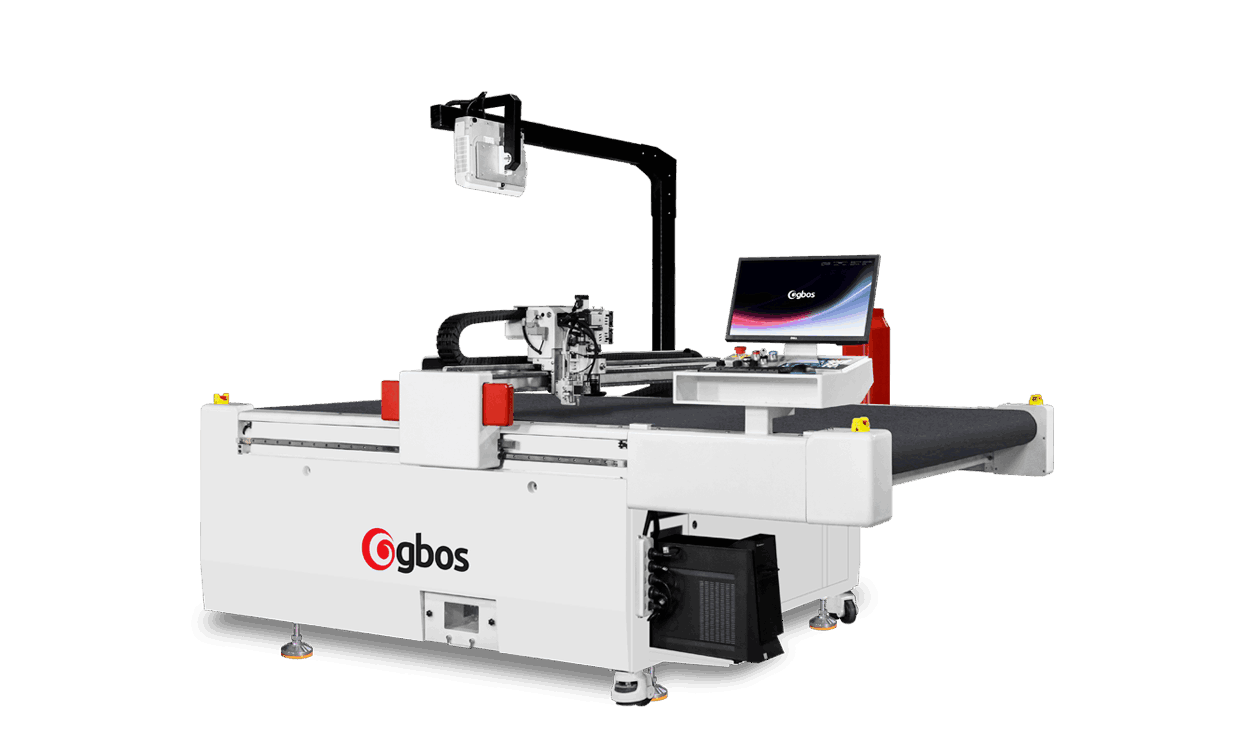

Model:VC9-1612

Faster digital cutting system for small order and  irregular production.



Specification Parameter

MODEL VC9-1612
Processing Area(mm) 1600*1200mm
Max cutting speed  1000MM/S
Gross Power 2300W
Weight 580KG
Acceleration 20M/S
Measurement (L×W×H) 2180×2380×1250MM
System/compatible  Format Windows 7/8/10,AI , PLT , DXF , DST ,DSB
Power Supply 380VAC, 40A/50-60hz/220VAC,50hz,20A
Environmental requirements Temperature 10-30℃,Humidity no condensation30-80%

Redefine the cutting standard

Perfection in all details
1
Automatic feeding,gripping feed system
Genuine intergrated feeding system not stripping. Multi-materials auto-feeding including knitted fabric、cloth、leather、foam (capable of multi-layers feeding) , The software can automatically measure the feeding length according to nesting, Matching one sheet perfectly with another, saving materials. Gripfeeding to ensure materials flat and stable.
2
IOT system
Based on basic needs of footwear industry
and GBOS customized datebase.
3
CCD/SCCD visual positioning (optional)
Feature point locating and cutting/Multipoint locating and cutting/Contour extraction and cutting/Intelligent recognition and cutting.
4

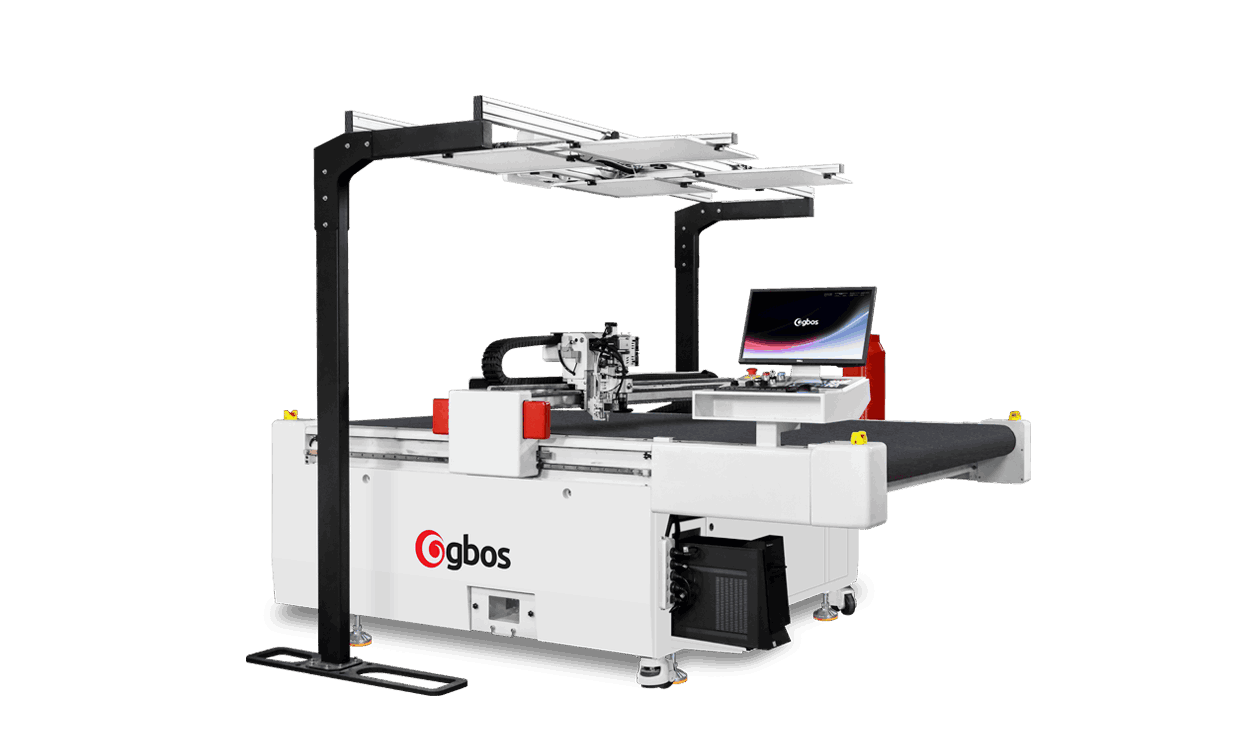

Dual projector positioning system
Projector positioning preview.
Instant Preview of Nesting Effects - convenient&fast.
5
Smart nesting system
This feature is more reasonable compared with the normal patterns arranging. It is easier to operate and save materials. It is capable of arranging odd number of patterns, cutting leftover materials and divided cutting of large patterns (unlimited feeding length).
6
Pneumatic knife,electric knife(optional)
Standard electric,Catering to various cutting needs, multi-options are available including 5 types of knife, 1 marking pen, 2 types of punching heads. pneumatic knife, electric knife (optional) high speed separate punching.

Modules & Tools

It is more accurate than the traditional crafts,and more efficiency.
